Reliable and stable Oil-free Scroll Series air compressor easy maintenance

Features Introduction

1，Reliable and stable

The scroll of the unique Neo involute tooth technology scroll will be at a high temperature due to no cooling of lubricating oil during operation. Neo involute tooth pro le technology solves the problem of thermal deformation of the scroll at high temperatures and e ectively ensures the reliability of the scroll machine. High-reliability bearings with surface treatment are used. High-performance inverters are used to control the speed, and a variety of control modes can be selected.

2，Low vibration, low noise

By optimizing the design of the scroll box machine, low noise near the library environment is achieved. (The noise value of the 3.7kW model is only 47dB[A]).

3，Easy maintenance

By increasing the grease injection port, grease can be lled without disassembling the moving/ xed scroll of the main scroll machine. Greatly simplify the maintenance procedures. Energy saving e ect under multi-machine compound control.

4，Energy saving e ect under multi-machine compound control

On the basis of Р mode control, multi-machine compound control is added, and it can be switched between the two by simple operation on the operation panel. In the multi-machine compound control mode, according to the air consumption, the number of main engines is automatically controlled to achieve the optimal operation of the compressor while ensuring the required pressure.

working principle

1，Inhale air from the suction port on the outside of the solid.

2，Compressed air enclosed in the compression space, the compression chamber shrinks due to the rotational movement, facing the compression.

3，The compression space is the smallest in the center. After the space is reduced by the rotation movement, it compresses towards the center.

4，1~3 (inhale-compression-exhaust) exercise will be repeated.

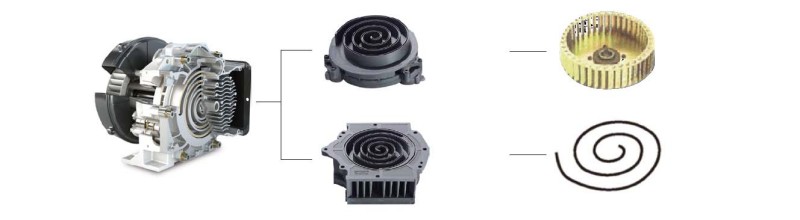

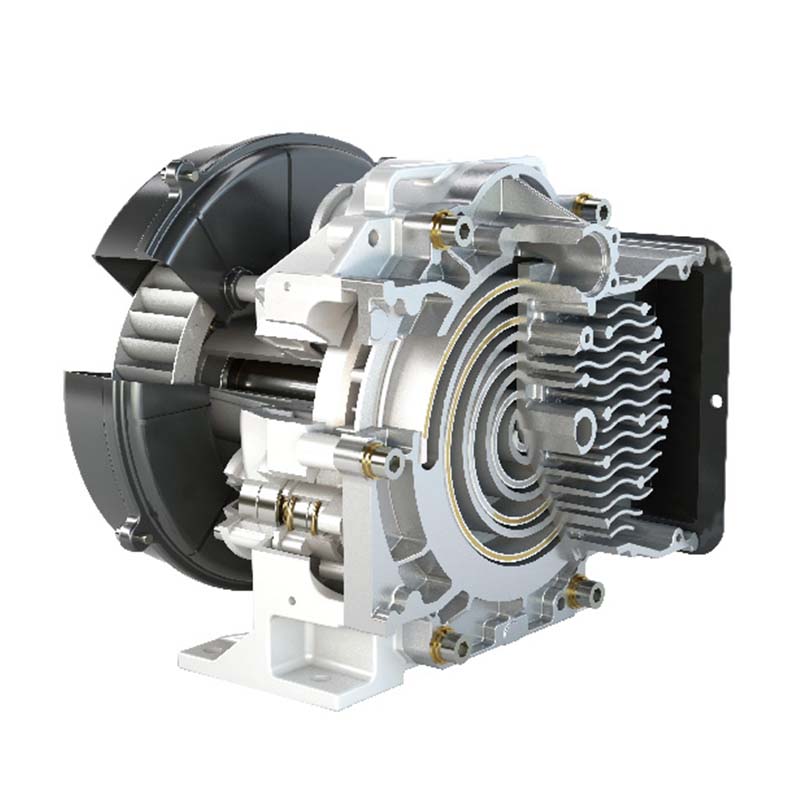

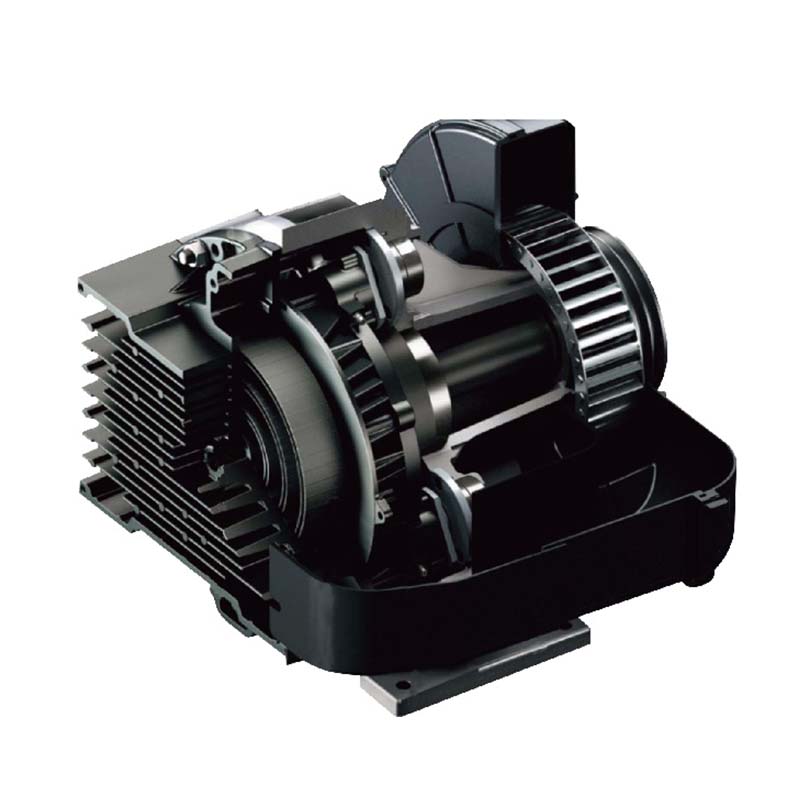

Main components of oil-free scroll air compressor

Adopt international advanced oil-free scroll compressor head.

High-precision orbiting scroll, xed scroll and shell processing to ensure high e ciency of the machine head.

Imported sealing material, the compression chamber and the lubricating transmission part are absolutely separated to ensure that the compressed air is absolutely oil-free.

The structure of the main engine is very compact. Compared with the screw air compressor, there are fewer parts and less consumable parts.

The cooling fan adopts an integrated centrifugal fan with low noise, high pressure head and large air volume to ensure su cient cooling air volume.

The machine head does not need oil cooling and lubrication, realizing truly no Oil

Application Field

The compression chamber of the main engine does not contain any grease, and the compressed gas is clean and pollution-free. Pure oil-free gas meets the gas supply needs of industries such as medical, food, laboratories, precision electronics, pharmaceuticals, automotive painting, gas separation equipment (adsorption and membrane separation oxygen production, nitrogen production).

Advantage

1. There is no oil/carbon pollution in the air system, and the service life is long.

2. Few moving parts, simple structure and high reliability.

3. No need to replace lubricating oil and oil lter, no waste liquid disposal problem.

4. When working, the moving and static scrolls do not touch, and the vibration and noise are small.

5. There is no risk of oil leakage, no need to centrally process condensate, and meet the harsh environmental requirements.

Technical Parameters

Working Environment
